Description of Products

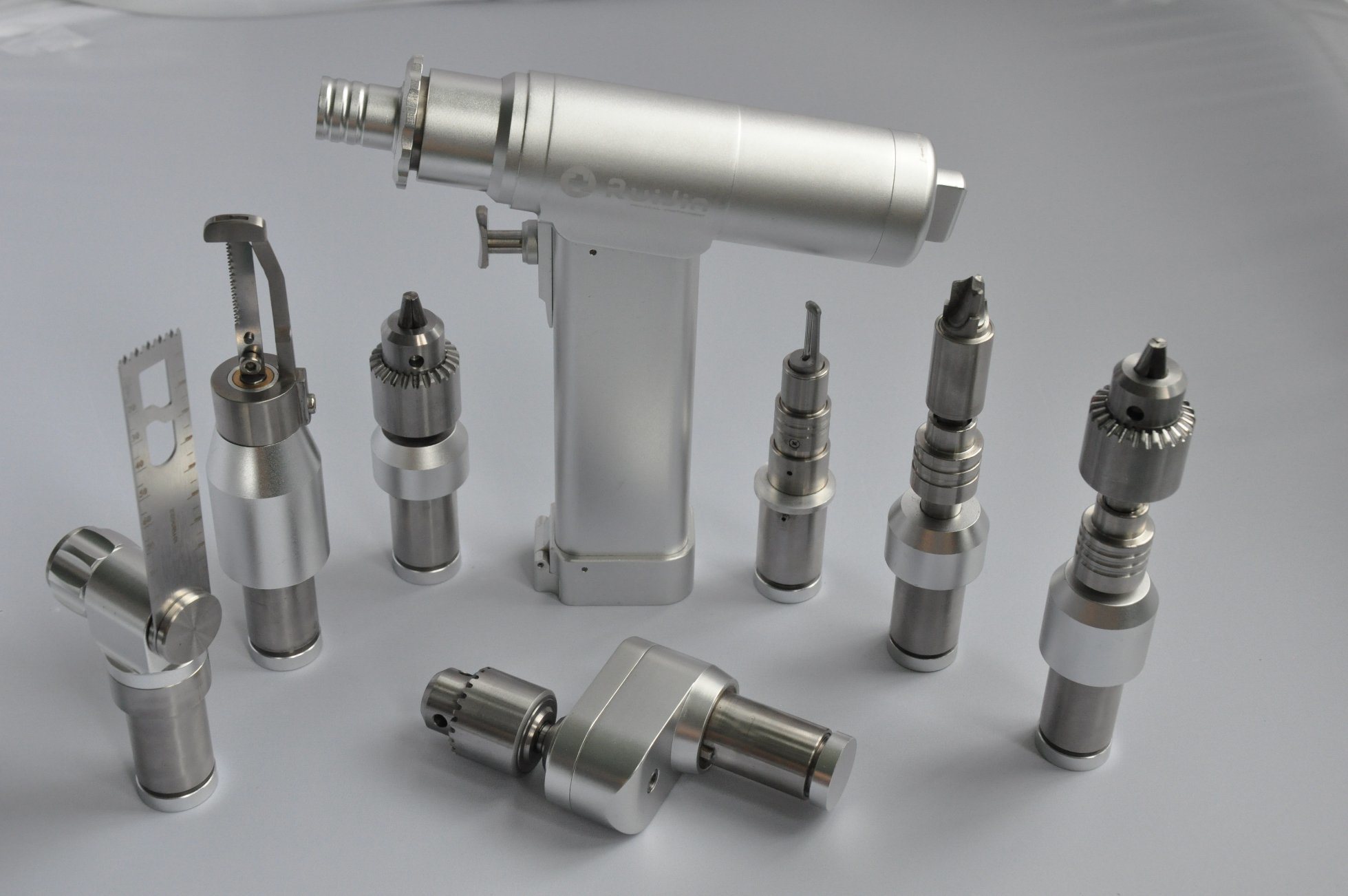

1. Multi-functional surgical power tool manual tool is a
multi-functional design with a variety of rapid replacement
accessories that can drive eight accessories: swing saw, acetabular
ablation drill, ordinary drill, wire drill, cranial bottom drill,
cranial bottom BUR, handle saw, reciprocating saw.
2. Sophisticated, of excellent quality, perfect human-machine
engineering design, wide compatibility, can meet different types of
surgical options.
3. The main parts of the multifunctional surgical electric tool can
be sterilized under high temperature and pressure of 135℃.
4. Stepless transmission, high torque, stepless transmission can
provide you with full speed, Brushless carbon import Swiss motor
provides strong energy, to meet various surgical requirements.
5. The technology is perfect, and the balance technology of human
body science is designed. It has the characteristics of accuracy,
comfort, difficulty in fatigue, and no obvious vibration in the
operation process.
Product Specification
| Product | Application |
| Sagittal Saw Attachment | Use for replacement surgey with Acetabulum Reamer Drill for cutting
bone |
| Bone Drill Attachment | Use for trauma surgery, drive screws for plate |
| Cannulate Drill Attachment | Use for trauma surgery, have a hole in the middle that can put a
K-Wire use for expanding the marrow, Jacob head usually dia 8mm |
| Dual Function Cannulate Drill attachment | Use for trauma surgery, have a hole in the middle that can put a
K-Wire use for expanding the marrow, Jacob head usually dia 8mm.
Connect with Skryker products |
| Dual Function Cannulate Drill attachment | Use for trauma surgery, have a hole in the middle that can put a
K-Wire use for expanding the marrow, Jacob head usually dia 8mm.
Connect with AO products |
| Cranial Drill Attachment | Use for Neurosurgery, can stop by itself |
| Cranial Bur Attachment | Use for Neurosurgery |
| Sternum Saw Attachment | Use for Thoracic surgery, open the chest |
| Acetabulum Reaming Drill Attachment | Use with sagittal saw for joint operation, replacement surgery for
hip and knee |
Dual Function Acetabulum Reaming Drill Attachment | Use with sagittal saw for joint operation, replacement surgery for
hip and knee. Connect with Skryker products. |
| Dual Function Acetabulum Reaming Drill Attachment | Use with sagittal saw for joint operation, replacement surgery for
hip and knee. Connect with AO products. |
| Oscillating Saw Attachment | Use for surgery operation, cutting small bone |
Features
- It can be used for various joint operations: oscillating saw
function, casing drilling tool function, K-line and needle drilling
tool function, acetabular ablation drilling tool function, flexible
abrasive tool function.
- It is self-locking and can be sterilized by high temperature and
high pressure up to 135 degrees C.
- Brushless motor made in Switzerland, stepless speed regulation,
high power, stability, low noise.
- Multifunctional design, convenient and economical
- Powerful Ni-MH battery, fast firing explosion-proof design,
powerful, safe and reliable.
- The handbag is hard and light. It is suitable for surgeons.
Packaging & Delivery

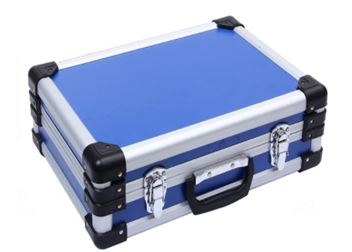

Packaging Details:White color box, sterilization case, aluminum
case
Port: Shenzhen
Lead Time : Within one week after receiving 100% prepayment
Standard Configuration
| 1 | One handpiece |
| 2 | Cannulate Drill Attachment |
| 3 | Dual Function Normal Drill attachment |
| 4 | Cranial Drill Attachment |
| 5 | Cranial Mill Attachment |
| 6 | Oscillating Saw Attachment |
| 7 | Sternum Saw Attachment |
| 8 | Dual Function Large Torque Drill Attachment |
| 9 | Two batteries |
| 10 | One Charger |
| 11 | One Chuck |
| 12 | Two Separate Sterilize Channel |
Product Advantages
| 1. Advanced motor technology |
| 2. The main components are made of aluminum |
| 3. Reduced vibration and enhanced handpiece control |
| 4. Long working time for battery |
| 5. Our whole power tool can be autoclavable for 135 °C with 1.6Mpa,
in this way the bacilli and virus which can not killed by the
suffocating will be killed |
| 6. We use environmental friendly nickel-metal hydride battery |
| 7. The machine has very low noise, High precision |
| 8. Our products has one years warranty period |
| 9. Ergonomic Design, Portable, Lightweight, Durable |
Warranty
The handpiece guarantees for one year, the battery and other fast
consumption items guarantee for 3 months.
Notes
1.Sterilize temperature ≤ 135 °C , if the temperature is over 135
°C , the motor will be damaged.
2.The battery need to be taken out from the power tool after
surgery. Otherwise the small automatic discharge of the electric
will make the life of the battery short.
3.The battery cannot be sterilized, it is not autoclavable.
4.The battery space in the handpiece of the tool should not have
any water,after sterilization.
5.The dill bit must be washed right after the surgery by purger in
order to aviod the blood stick in the dill bit ,then we should make
it dry.
Company Advantages
1. We are manufacturer and have our own factory
2. customized design is avaiable, OEM & ODM are welcomed
3. Best after service: 1year warranty and lifetime service
4. Prefession and Hardworking Team, reply your inquiry in 24 hours;
5. Quality assurance, Traumedtech is a strong enterprise.
Why Traumed will be your reliable orthopaedic supplier in china?
1. Price: Reasonable Price based on perpect quality
2. Feedback: Quick feedback service in 12 hours
3. Service: Excellent Service all the time
4. Technologe: Specialised engineers,high technologe
5. Concept: Creating Quality by Technology,Serving the society by
love
FAQ
Q: Trading company or manufacturer?
A: We're a manufacturing company. Our location is in Dongguan,
Guangdong Province, China. 0.5 hours by high-speed train from
Shengzhen.
Q: Regions of sales?
A: At present our main overseas markets are Asia, South America and
Europe.
Q: Regional Distribution?
A: Yes we are looking for and welcome distribution.
Please contact us for discussion if you are interested to become
our distributor.
Q: How long is delivery time?
A: Generally 7-15 days if stock available and 30-45 days if regular
production needed.
Depending on order quantity, product type, and other order factors
and requirements.
Q: Samples available? Free or extra ?
A: We can accept sample order.With extra charge.
Q: Terms of payment ?
A: T/T,Western Union.
Q: Any OEM service?
A: We can offer OEM service. Products can be made-to-order and with
special requirements.
