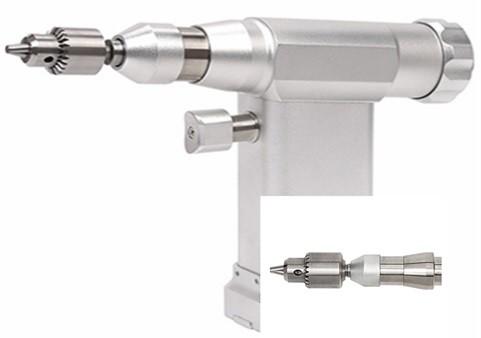

Surgical Small Hand And Foot Orthopedic Drill Machin,Orthopedic
Electric Drill For Hand And Foot Surgery
Name:Small Drill (For hand &foot surgery)
Including
1 PC Motor
2 PCS Batteries
1 PC Charger
1 PC Key
2 PCS Separate Sterilize Channel
1 PC Operating Manual
1 PC Guarantee Card
Features
| Max rotational speed : 1200rpm |
| Green Batteries :7.2V |
| Stepless;offer reversing choice; |
| To clamp drill bit for φ 0.6-8mm, |
| Host powerful; Siamese Closed back cover. |
| Positive and negative ratation, smooth operation and stepless speed
regulation |
| Environmental protection battery within voltage of 7.2 . No need
for sterilization |
| whole machine can be autoclavable and sterilized by high
temperature |
| Battery charged suitable for voltage of both 110V and 220V |
| Complete Set: One motor , one key , two batteries , one charger ,
two separate sterilize channel |
Packaging & Delivery
Packaging Details: Sterilization case, aluminum case
Port: Shenzhen
Lead Time : Within one week after receiving 100% prepayment
Application
Medical electric surgical drills are mainly used in drilling and
steel plate screws in trauma surgery. Made of high-strength
biomedical aluminum, its perfect ergonomic design, infinitely
variable speed, low noise, low vibration and easy to use give the
operator and patient a good experience. can be high temperature and
high-pressure sterilization, safe and reliable performance reduces
the risk of surgery.
Operational process
1. See if the cobalt battery is sufficient, and check whether the
cobalt switch is sensitive.
2. Install the battery of the electric drill, press the switch of
the electric drill and see if the electric drill foot starts.
3. Adjust the speed to see if the drill speed can be controlled.
4. Fixed the patient in the operating bed for h, and operated on
the operation site.
5. In principle, the vertical operation method should be adopted,
and the speed should be controlled from slow to fast.
6. After the inspection, turn off the power switch of the electric
drill and take out the battery.
Product advantages:
1. The main engine can withstand 135 C high temperature and 1.6 Mpa
high pressure disinfection, and the whole machine can be
disinfected.
2. Small and convenient, durable
3. Hollow cup motor, strong power
4. High coaxiality and low noise
5. Stepless speed change of main engine, easy to use
Company Advantages
1. We are manufacturer and have our own factory
2. Customized design is avaiable, OEM & ODM are welcomed
3. Best after service: 1year warranty and lifetime service
4. Prefession and Hardworking Team, reply your inquiry in 24 hours;
5. Quality assurance, Traumedtech is a strong enterprise.
Warranty
The handpiece guarantees for one year, the battery and other fast
consumption items guarantee for 3 months.
Notes:
1. The sterilization temperature of the Whole machine should be
less than 135 C. If the sterilization temperature exceeds 135 C,
the machine may be damaged.
2. Batteries of this product should not be sterilized under high
temperature and pressure and remain in the mainframe for a long
time. After the operation, the batteries should be removed from the
mainframe. If power failure occurs during the operation (the main
engine does not work), the standby battery should be replaced
immediately.
3. Firmly lock the cutting tools such as drill or saw blade. After
locking, it can be tested and verified.
4. The machine and accessories should be placed in a dry place
after use to prevent rust from affecting the use of the products.
5. According to the situation of common surgical drills, if the
rotational speed of medical drills is too high, it may cause bone
burns and necrosis, and the rotational speed is too low, it will
lead to long operation time, so please choose different types of
medical drills according to different operations.
Cleaning & sterilization
1. The battery must be removed before it can be sterilized.
2. Cleaning: Battery case can be soaked with gauze or alcohol after
scrubbing, safe to keep.
3. Sterilizing: must be sterilized before each use. When
sterilizing, the whole machine is placed on the stainless steel
mesh frame, and high-pressure sterilization is carried out
according to regulations.
4. Do not crash the battery when loading it, otherwise it will
damage the battery
FAQ
Q: Trading company or manufacturer?
A: We're a manufacturing company. Our location is in Dongguan, Guangdong Province, China. 0.5 hours
by high-speed train from Shengzhen.
Q: Regions of sales?
A: At present our main overseas markets are South America, Middle
East, Africa and Asia.
Q: Regional Distribution?
A: Yes we are looking for and welcome distribution.
Please contact us for discussion if you are interested to become
our distributor.
Q: How long is delivery time?
A: Generally 7-15 days if stock available and 30-45 days if regular
production needed.
Depending on order quantity, product type, and other order factors
and requirements.
Q: Samples available? Free or extra ?
A: We can accept sample order. With extra charge.
Q: Terms of payment ?
A: T/T,Western Union.
Q: Any OEM service?
A: We can offer OEM service. Products can be made-to-order and with
special requirements.
Contact
Full name: Traumed Technology Co., Ltd
Address: 5th Floor, Building C, Reyuan Industrial Park, No.28
Qingtang Road, Youganpu Village Fenggang Town, Dongguan City,
Guangdong Province, China
Post Code :102605
Tel: +86-15916781618
E-mail: marketing@traumedtech.com
Website : www.traumedtech.com/en
